CNC CONTROLLER

CNC CONTROLLER EDGE CONNECT CNC

Hypertherm's computer numerical controller delivers reliable, high-performance, customized settings

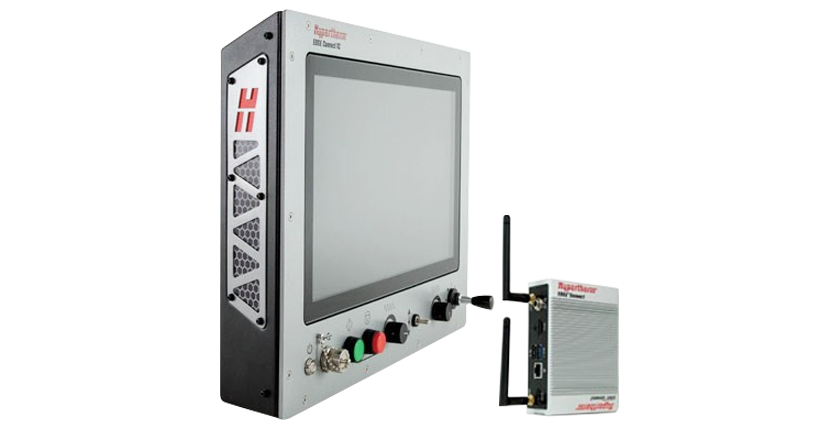

EDGE® Connect, Hypertherm's latest Computer Numeric Control, offers unsurpassed reliability, powerful built-in capabilities, and high levels of customization. Based on Hypertherm's proprietary Phoenix® CNC platform, the system also offers improved hardware along with new advanced software technologies such as ProNest® CNC automated arrays that deliver SureCut™ technology.
The EDGE Connect CNC can be field-configured with software dedicated to cutting equipment for easy setup, modification and upgrade. Easy-to-use systems combine advanced cutting performance with an intuitive graphical interface, which supports plasma, oxygen gas and water jets.

System Information

ProNest® CNC Array

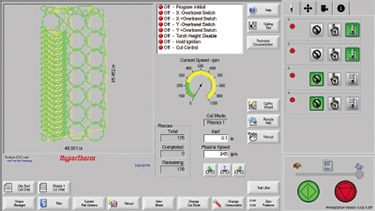

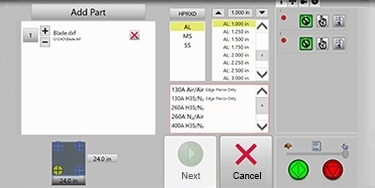

  • The easy-to-use touchscreen interface allows equipment workers to create arranged parts programs and achieve optimal cutting quality without further training.
  • Directly recall the simple appearance of DXF, DWG, CAM, DGN, and CNC.
  • Maximize performance with built-in SureCut™ technology and built-in expertise. Patent True Hole® technology ensures that all operator variables are properly set along with process verification.
  • Includes a pattern array for a single part with process optimization.
  • True Shape Array Module for Multiple Parts (Optional)

Customized performance

  • Designed for use in plasma (cutting, marking, beveling, pipe/tube), oxygen fuel (including bevel), water jets, etc.
  • Provide two hardware configurations to meet the needs of the cutting equipment manufacturer.
  • Optional Sensor Plasma Torch Height Control Equipment (Sensor THC)

Field configuration

  • Basic and advanced process control for plasma, oxygen gas, and water jets
  • Integrated Sensor THC and Bevel
  • ProNest CNC True Shape Array
  • PLC Connect™

OEM Customization

  • PLC Connect is mounted on the CNC to provide additional functionality in relation to input/output signals, location, cut-off status, and error situations, and also complies with IEC61131.
  • Customized OEMs in the display software operator console to control unique system tools and functions through the C# Application Interface (API)

Quick and easy installation

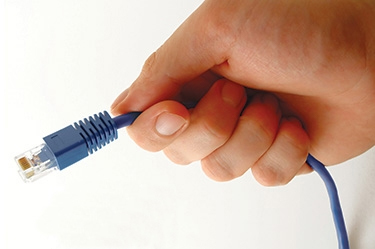

  • Connecting only one EtherCAT® cable to the CNC makes all behavioral and input/output signals very simple, and reduces installation time.
  • Hypertherm's communication with the HyPerformance® plasma system is achieved by connecting EtherCAT directly to the cutting system.

Flexible configuration

EDGE Connect

Configure the smallest of the cnc edge connect is the most flexible integrated the equipment.Touch screen and the switch provides workers is cutting equipment oem

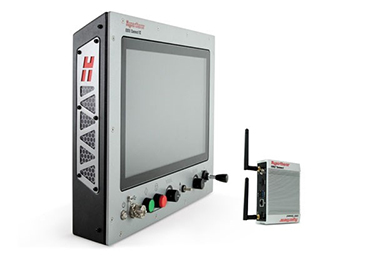

EDGE Connect TC

Integrates the EDGE Connect CNC into an industrial enclosure equipped with a 19.5-inch display touchscreen. Start, stop, program, manual speed adjustment, torch up/down, with console for hardware operator with joystick switch.
