plasma system

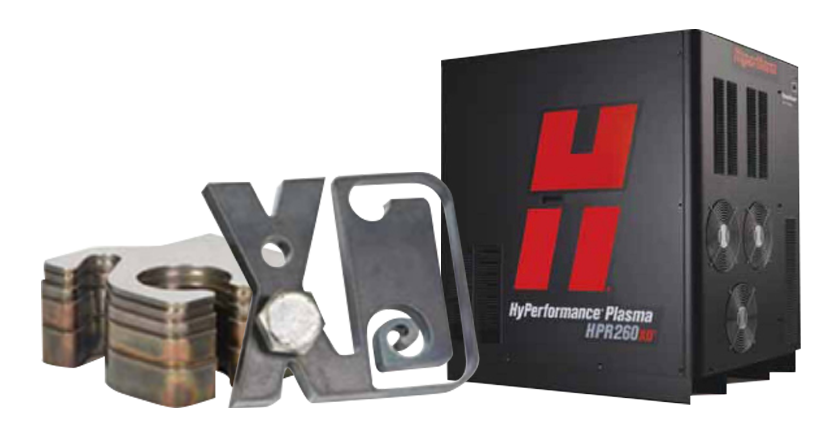

HPR260XD

PLASMA SYSTEM PLASMA SYSTEM

Superior cutting performance ensures consistent quality and maximizes productivity with minimal operating cost, enabling reliable HPR XD series

Hypertherm holds more than 100 plasma technology patents that deliver the best performance customers can trust over 40 years of development effort. With more than 20,000 HyPerformance plasma systems in use worldwide, the HPRXD family has become the most consistent cutting quality, highest productivity, lowest operating costs, and reliability-driven customer choice.

Features and Advantages

The HyPerformance® HPR400XD plasma system is designed and built to deliver maximum performance and productivity for x-y, bevel, robot cutting operations. This versatile 400 ampere-class system combines fast cutting speed, fast process cycle, fast part exchange, high reliability, ultimately HyPerformance mild steel cutting quality and aluminum cutting capability, and stainless steel cutting quality beyond comparison.

Excellent cutting quality and consistency

  • Hyperperformance plasma cuts into superior quality and consistent fine-figure parts, eliminating the cost of additional operations.
  • Patent-registered HyDefinition technology aligns and focuses plasma arcs for more precise cutting, ranging from mild steel to up to 64mm.
  • The new HDi technology provides HyDefinition cutting quality for thin stainless steel from 3mm to 6mm.

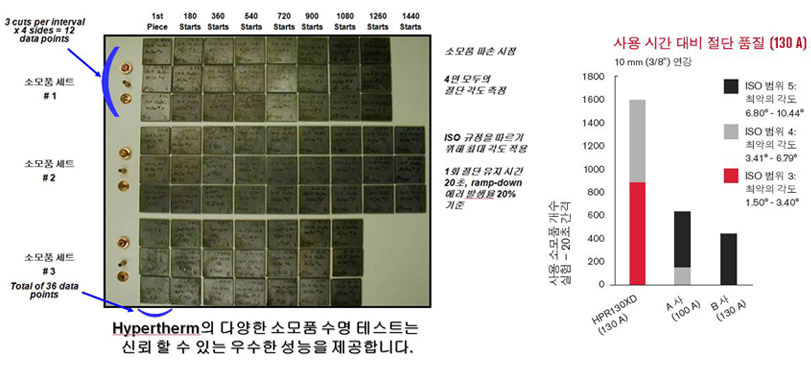

  • With patented system technology, work is performed with a consistent cutting quality over a longer period of time than any other system currently available.

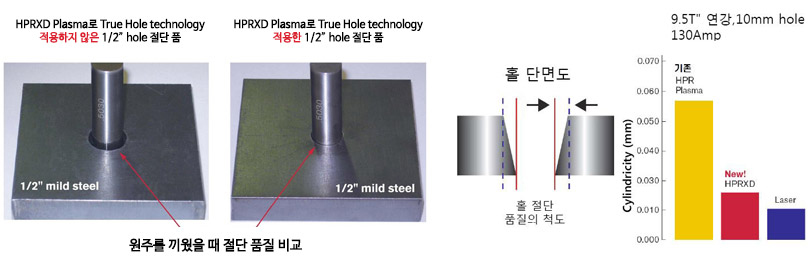

True Hole™ Technology

Maximize Productivity

HyPerformance slasuma maximizes productivity by combining high-speed cutting speed, fast process cycle, fast part replacement, and increased operational time.

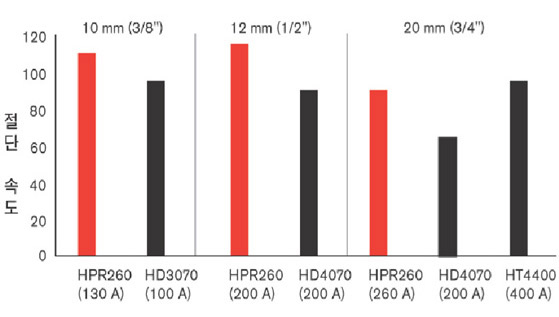

Hydefinition technology with 38% faster cutting speed

Minimize OPEX

HyPerformance plasma has lowered operating costs and improved profitability. LongLife" technology significantly increases consumable life and provides consistent HyDefinition cutting quality for the longest period of time.

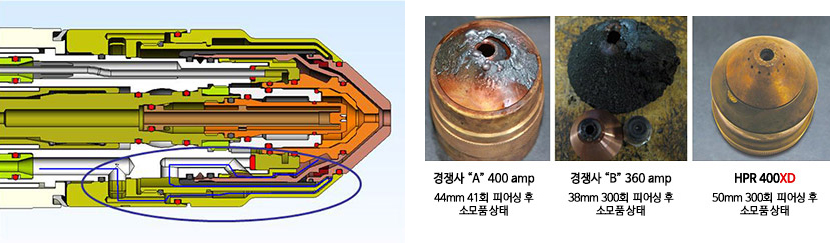

Apply water cooling shielding technology (left) / Compare consumable wear conditions (right)

Reliability beyond third-party capabilities

With more than 40 years of experience, extensive testing ensures reliable Hypertherm quality.

  • HALT (Highly Accelerated Life Testing)
    Vibration test 0 to 60 G Vibration -70°C to 100°C (at 60°/minute)
  • Power Supply, Torch and consumable stress tests
    Conduct a stress test five times the expected life of the equipment. Stress Condition: Under high voltage input conditions (test 400V equipment at 575V conditions), increase the output current by 20% to conduct an RF Noise test at a temperature of 50°C.
  • Power Supply Impact Test
    Roll it 100 times. Drop 100 times at 15cm height on the concrete floor. Drop it on the concrete floor at a height of 1m.
  • Dust and Humidity Test
    Test under conditions in which 0.5 kg of metal powder is drawn into the equipment through the cooling fan for more than 20 hours with the arc occurring. Leave the equipment in a place with a humidity of 95 percent for 96 hours.
  • Power Supply
    IP waterproof test & insulation breakdown test, CE/LVD safety test, handle load test 10 times the weight of the equipment
  • Torch Testing
    IP waterproof test & insulation breakdown test, CE/LVD safety test, handle load test 10 times the weight of the equipment
  • Inspection is carried out in a separate laboratory for each manufacturing assembly process.
  • Hi-pot Test – high voltage/low amperage Part Confirmation
  • These tests are conducted in each process to ensure the highest durability and stability.

System Specifications

Input voltage220/240/380/400/415/440/480/600, 50/60Hz, 3PH
Output voltage175 VDC
Output current260 A
Utilization100%
Max OCV311 VDC
Volume115 cm H, 82 cm W, 119 cm L
Weight567 kg
Use gasPlasma gas : O2, N2, F5*, H35**, Air, Ar
Shield gas : N2, O2, Air, Ar
Gas pressureManual Gas Console 8.3 Bar
Automatic gas console 8.0 bar

Cutting capacity

Mild Steel Cutting capacityNo Drops
Production (Pierce)
Limits (Edge Start)		32mm
38mm
64mm
Stainless Steel Cutting CapacityProduction (Pears)
Limits (Edge Start)		32mm
50mm
Aluminum Cutting CapacityProduction (Pierce)
Limits (Edge Start)		25mm
50mm
