System Information

Specification

Regulatory approvals,	CE, CSA, GOST-R
Temperature Range	-10°C~+40°C Indoor
Humidity	95% RH
Size	lifter: 127mm X 151mm X 743mm HMI: 298mm X 131mm X 118mm Control Module: 359mm X 157mm X 206mm
Torch mount Brakeaway Assembly	11.4kg Magnet (recommended) 4.5kg Magnet Air type Include torch mount options: 51mm, 44mm, 35mm
Stroke Speed	15240mm/min
Lift Capacity	11.4kg
Warranty	Standard for 2-Year Warranty YEARS
Communication Protocol	Hypernet® – CNC Detachable Wiring or Hypernet-to-Plasma Systems
Voltage	115V/230V at 50/60hz for HMI 115V/230V at 50/60hz for control module
Lift stroke length	241mm
Table Type	Descent and Water Table High Current Capacity 1 – 4 Plasma System
Communication protocol	Hypernet Including – Connect to plasma from Hypernet to CNC/HMI and Hypernet separately Exclude Hypernet – Connect to HMI or RS-422 serial to CNC in Hypernet, and connect separately to plasma

System Information

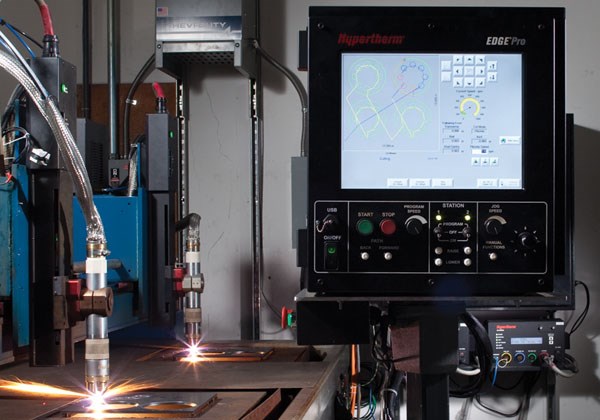

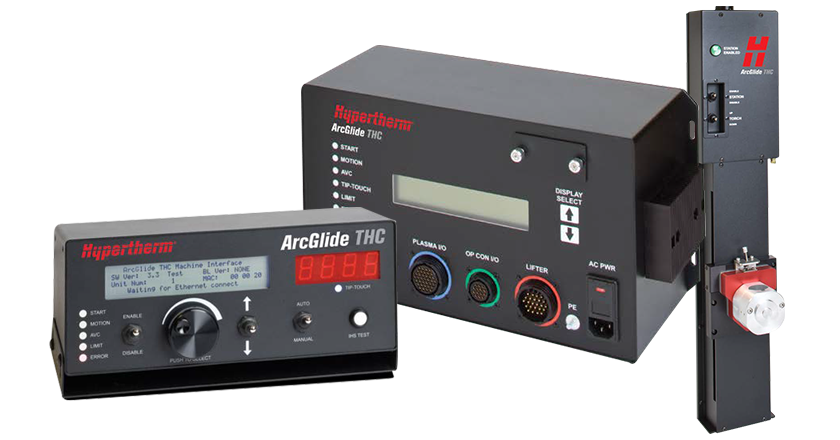

Sensor THC is a torch height control system integrated into the CNC that integrates Hypertherm cutting task expertise by pressing buttons. The built-in cut diagram provides all the parameters for the plasma system and THC that reduce job setup time and operator error while increasing productivity.

• Sensor THC enables you to achieve performance advantages without worker input, eliminating the need for extensive training and delivering the best performance for any worker in any location.
• The operating logic is located inside the CNC, providing a simple location for the entire job setup.
• Use Hypertherm's built-in work expertise through cutting charts or part-program work codes
• Sensor THC supports the use of custom lifts for custom performance, supporting unique applications such as plasma bevels, tubes, pipes, and water jets.
• Internet Remote Diagnostics via Remote Help on CNC
• SureCut Use Technology( TrueHole® , TrueBevel™, Rapid Part™)

• 1Easy and reliable operation

• Full built-in testing for easy locking, system testing and configuration
• Built-in user programmable process control parameters for initial height detection, plasma arc bolts, torch height deactivation, auto-slope cross detection, IHS skip, IHS offset
• Automatic retry in case of arc transfer failure

• 2Productivity

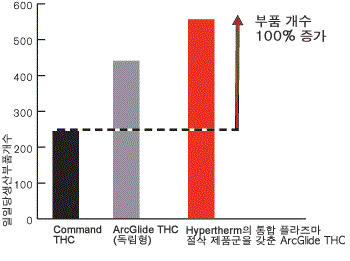

• Minimize cycle time between Rapid Part™ technology cuts – a dramatic increase in the number of parts per hour
• Automatic Initial Height Detection (IHS) minimizes the time it takes for the torch to locate the steel plate without the risk of damage.
  Automatically skip IHS if possible based on part geometry and steel plate properties.

• 4Improved cutting quality and consumable life

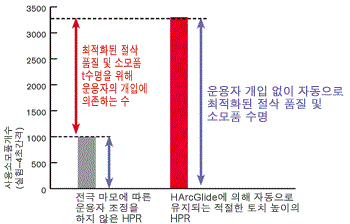

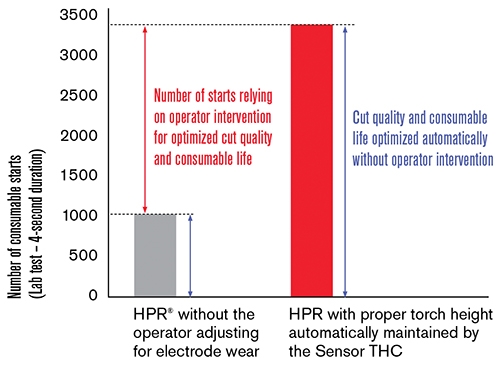

• For conventional torch height control, the operator had to periodically adjust the arc voltage in order to obtain an appropriate cutting height. Using Hypertherm's proprietary method, Sensor THC continuously samples arc voltages to automatically adjust arc voltages to the appropriate torch height throughout the life of the consumable without operator input.
• Automatic arc voltage sampling and location control achieve optimal consumable life and excellent cutting quality.

Specification

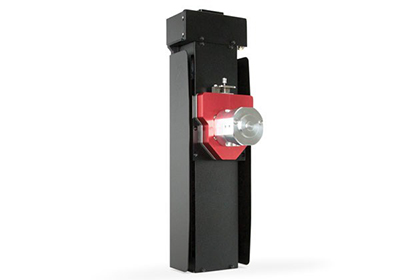

size	127mm X 152mm X 526.5mm
Lift stroke length	241mm
Weight	11.27kg(Detach and Exclude Torch Blocks)
Motor	OEM Supply – 60mm flange, 70mm bolt diameter circle
Maximum lift capacity rating	11.4kg
Maximum Speed Rating	15,200mm/min
Communication protocol	Separate motor and I/O wiring EtherCat to HPR Plasma System
Humidity	95% RH
Operating environment	-10°C~+40°C Indoor
Optional Torch Mount Brakeaway Assembly	11.4kg Magnet (recommended) 4.5kg Magnet Includes Torch Mounting Block Option: 51mm, 44mm, 35mm
Alignment Laser Pointer	Include as standard
Table Type	Descent and Water Table
