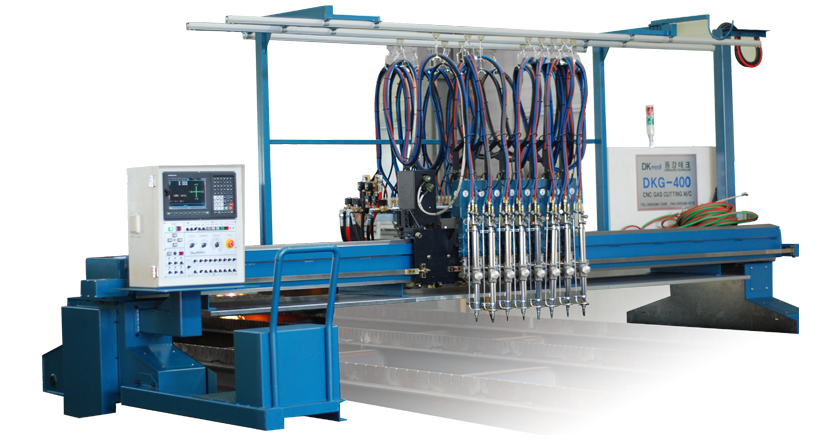

CNC Gas Cutting

CNC Gas Cutting

Economical and convenient CNC gas cutters with high speed, fixedness and high functionality

DKP-Series

  • Torch up and down speedMax 20m/min
  • Moving speedMax 18m/min
  • Marking speedMax 18m/min

Control

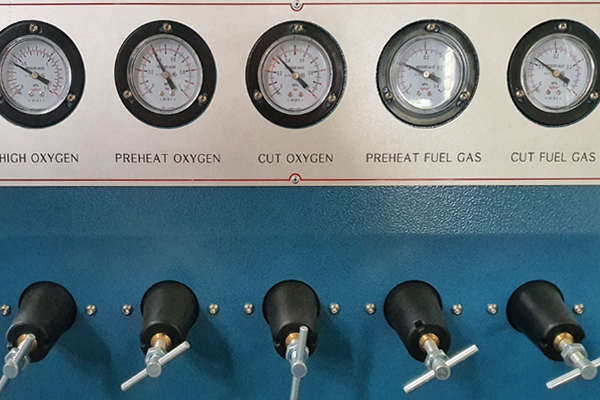

Gas Control Device

  • High pressure oxygen, preheating oxygen, and fuel gas required for cutting are adjusted within the gas control panel using a high pressure regulator to maintain constant pressure at all times to provide the best cutting quality.
  • Automatic operation by CNC program and manual operation by control panel controls oxygen and fuel gas. (ON/OFF, Automatic/Manual)

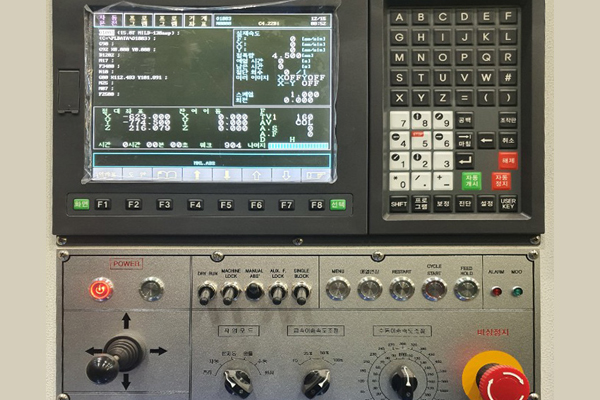

Operation Unit

  • 10.4 inch Color TFT LCD Display
  • Memory capacity : 3GB
  • Data (Program) I/O : USB Unit
  • Graphic, preview, and cut monitoring capabilities
  • Cutting Path Reverse Driving Function Material Automatic Arranging Function
  • Selective display in Korean and English is possible

  • Gas Control Device

  • Operation Unit

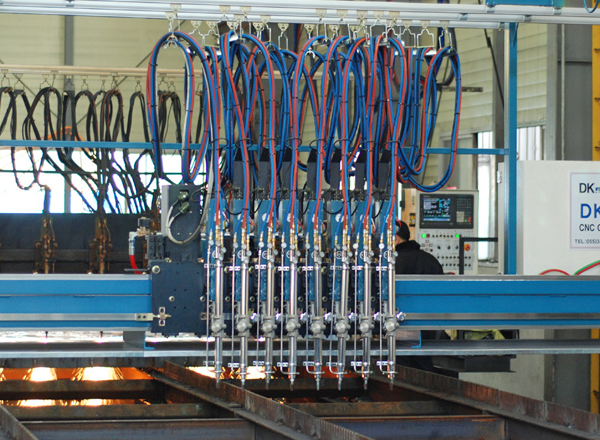

Electric torch up/down unit

  • Electric Torch Stroke : 100mm/STD
  • Individual torch up and down and overall torch up and down adjustable
  • Water injection system
  • Automatic ignition device
  • Torch transfer method of steel belt type

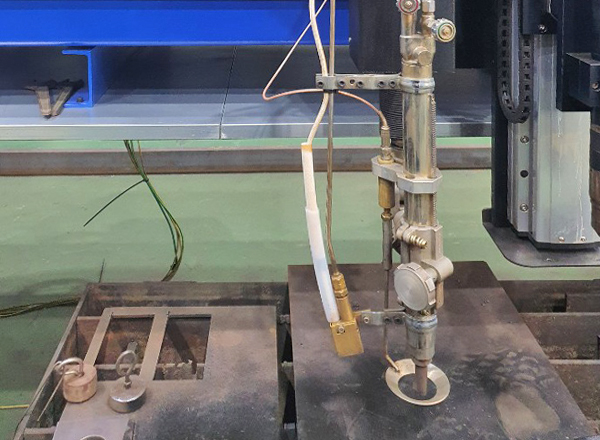

Powder Powder Stringer

As a device that automatically displays welding position, bending position, baseline, drilling, etc. by the machine, marking works without moving from floor to other work floor, saving production time and zeroing manual defects, marking ensures high-speed production.(After marking, cut the cutting work is carried out)

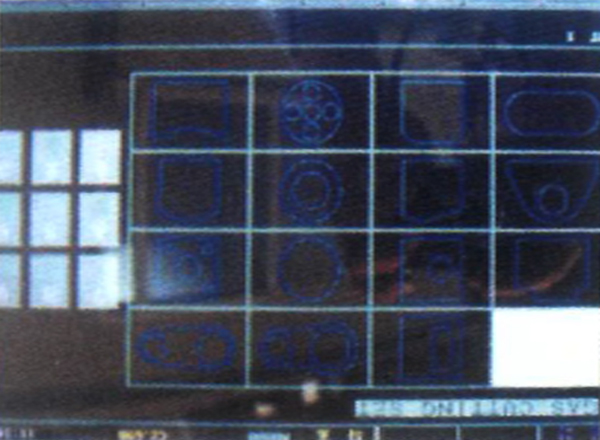

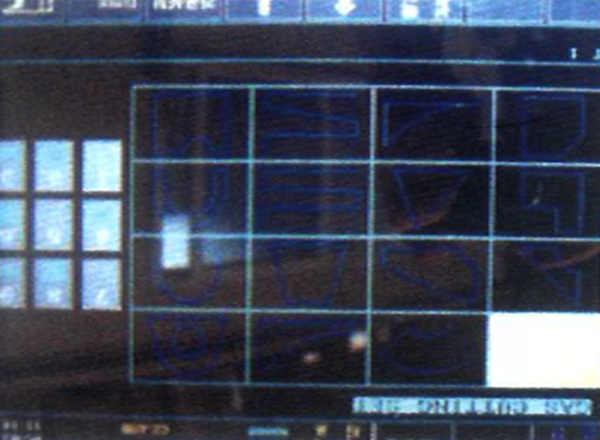

Shape input processing

Methods for cutting processing by entering only dimensions of features without a separate NC program (37) by pre-drafting frequently performed features.

  • Electric torch up/down unit

  • Powder Powder Stringer

  • Shape input processing

  • Shape input processing
