product

plasma

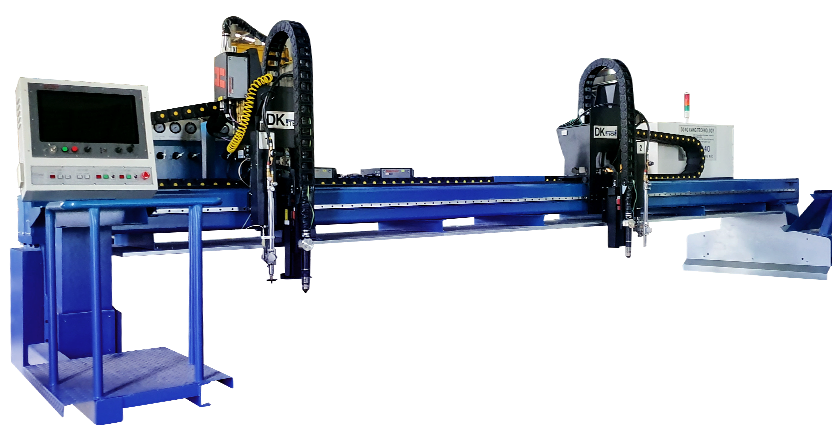

PLASMA Two Torch

Plasma Cutting Plasma Cutting

Plasma-only cutter that improves productivity with high-speed mobility and high-quality cutting

DKP-Series Plasma ultra-precision cutter

  • Torch up and down speedMax 20m/min
  • Moving speedMax 18m/min
  • Marking speedMax 18m/min
  • PLASMA TWO TORCH is installed to maximize mass production.
  • Plasma Cutter The original high-speed cutter is a plasma-only cutter that has reduced production time by rechecking all of the cutter's movements to improve productivity.

Specification

TypeRobot Cutting System
Construction of the properGantry Type, Dual Side Drive
Control PanelControl panelLeft(Right is optional)
Driving methodRack & Pinion
Rail distance4.3m/5.3m/6.3m/7.5m
Effective cutting range3.2m/4.2m/5.2m/6.4m
Traveling speed(transverse)18m/min
Traveling speed(longitudinal)18m/min
Marking speed18m/min
CNC deviceEDGE CONNECTOR 19"Touch screen
Length of memorySSG 128GB
Number of programs1000
Rail37kg/m M2 Rack attached
Voltage of power220V/380V/440V/50Hz/60Hz
Mounted plasma systemHPR800XD / HPR400XD / XPR Series

Hypertherm Series

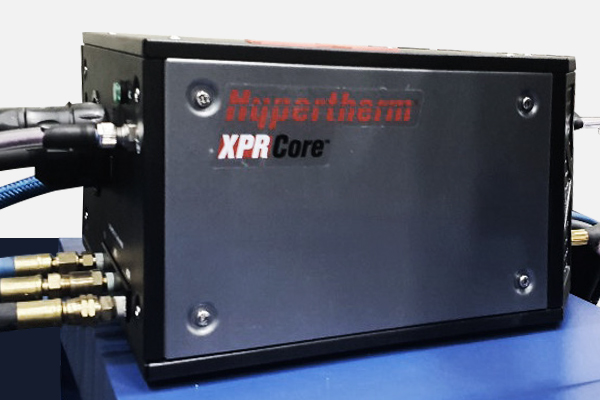

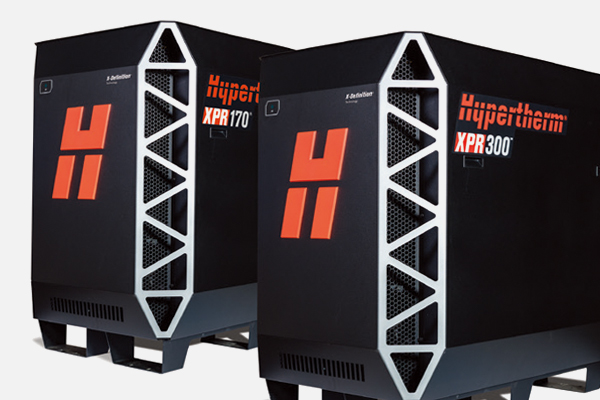

  • PLASMA SYSTEM

  • EDGE MONITOR

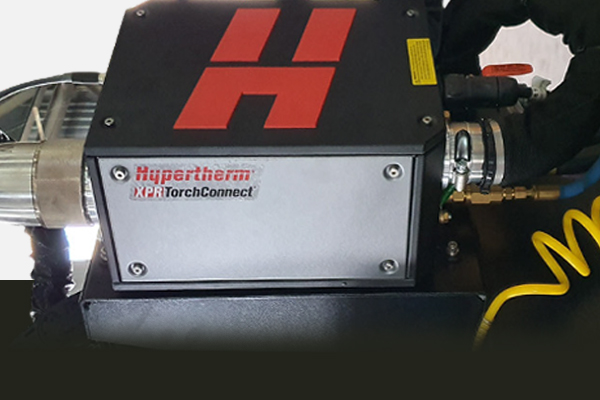

  • TCC CONSOLE

  • GCC CONSOLE

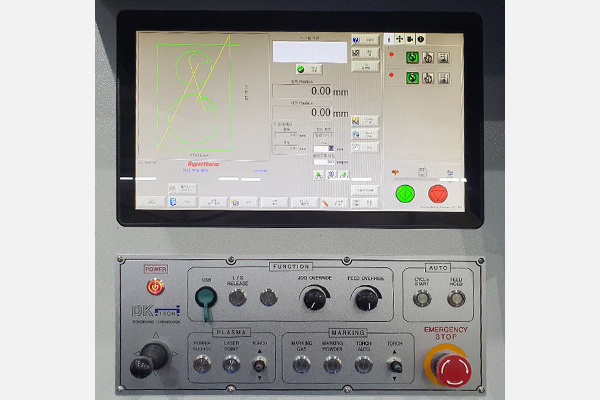

CNC Control Unit

  • It is a cutter-only CNC that has a variety of functions to meet the needs of users.
  • Increase productivity with fast processing speed and accurate operation.
  • It is easy to learn because it is easy to operate.

DONGKANG TECH
